SEMI-CUSTOM GARAGE DOORS

Our semi-custom wood doors are built with quality in mind and are a beautiful cost conservative option. They are constructed like a traditional rail & stile door with 10 standard designs available in paint grade or stain grade. Each design can be slightly modified to your desired specifications.

Elegant Guarantee

At Elegant we provide quality craftsmanship that will last for years to come.

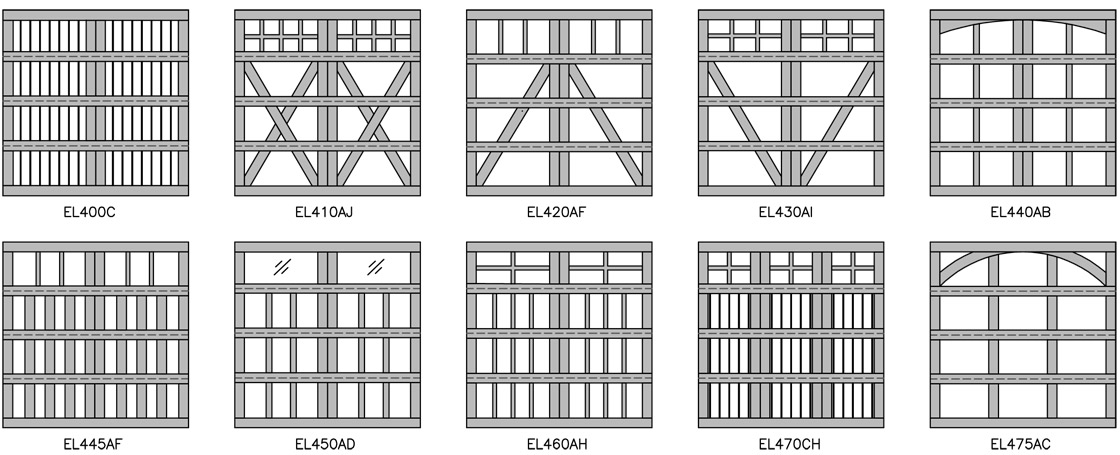

DOOR STYLES

Choose Your Door:

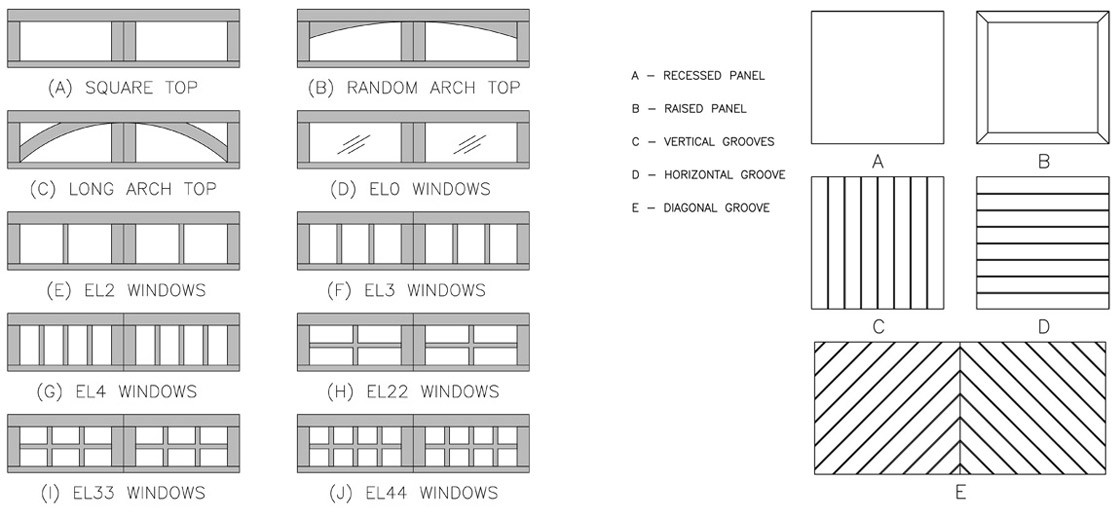

Window & Panel Styles

1/8” Clear Double Strength Billet Glass
Many other types of glass are available including insulated options
2” Wide Mullions
Faux Divide is standard
True Divide (Thru and Thru) available

SEMI CUSTOM SPECIFICATIONS

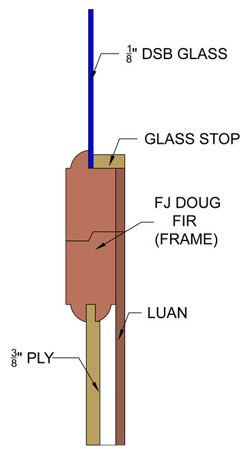

2 Layer Door

Paint Grade (primed white)

Back (layer 1): ¼” Luan
Frame (layer 2): 1-3/8” FJ (Finger Joint) Hem Fir Deep Plowed
Insulation: ½” Polystyrene is optional and considered an upgrade.
Panels (Option 1): 3/8” Baltic Birch recessed panels available with or without V-Grooves.
Panels (Option 2): ½” Extira raised panels (Considered upgrade, additional charges may apply)
Stiles: Double center stiles with V-Groove

Stain Grade (unfinished)

Back (layer 1): ¼” Luan
Frame (layer 2): 1-3/8” Clear Western Hemlock Deep Plowed
Insulation: ½” Polystyrene is optional and considered an upgrade.
Panels (Option 1): 3/8” Aquatek Marine Ply recessed panels available with or without V-Grooves.
Panels (Option 2): 5/8” Hemlock raised panels (Considered upgrade, additional charges may apply)
Stiles: Double center stiles with V-Groove

Finish

Paint Grade: Comes primed white with 1 coat of exterior grade water based primer
Stain Grade: Comes unfinished and requires sanding prior to finishing. (Finishing is required to be completed within 72 hours of installation)

Track

All 2" tracks are 12" or 15" Radius - 14 gauge horizontals with 17 gauge verticals
All tracks are mounted with reverse continuous jamb angle
Horizontals are reinforced with 13 gauge angle mounted continuous to the length of the horizontal
All 3" tracks are 15" Radius - 12 gauge and use is determined by weight of door
Options: Low Headroom (0" or 3.5" ), High Lift, Vertical Lift, Follow the Pitch

Hardware

All components are galvanized steel and consist of 11 gauge hinges, 12 gauge top & bottom fixtures
2" nylon 10 ball bearing rollers with long-stem for top & bottom fixtures and short-stem for hinges
Inside lock included.

Counterbalance

Springs are oil tempered and calibrated per door weight, size and track requirements
Standard springs are 10,000 cycle
25k, 50k, 100k cycle springs are available with an additional cost
12 guage bearing & spring plates
16 gauge torsion tube is standard, 14 gauge, 11 gauge and solid shafts are available and used when specified

Struts

22GA 2-1/4" galvanized steel struts with every door, 3" when specified.
Quantity is determined by number of sections

Weather Seal

1-3/8" EPDM bottom seal and nailed in using galvanized nails

Warranty

Limited 1 year warranty against defect in workmanship or material; limited 1 year warranty on hardware and components.

Miscellaneous

Putty: All doors are assembled with galvanized staples and filled in with putty except Cedar and Marine Ply
Standard Texture is smooth
Hand Hewn, Re Sawn, and Wire Brushing are available for additional cost
Perimeter Weather Strip (Stop Mold): 11/16”x2-1/4”
