Model EL110 Gates by Elegant

EL 110 and EL 5

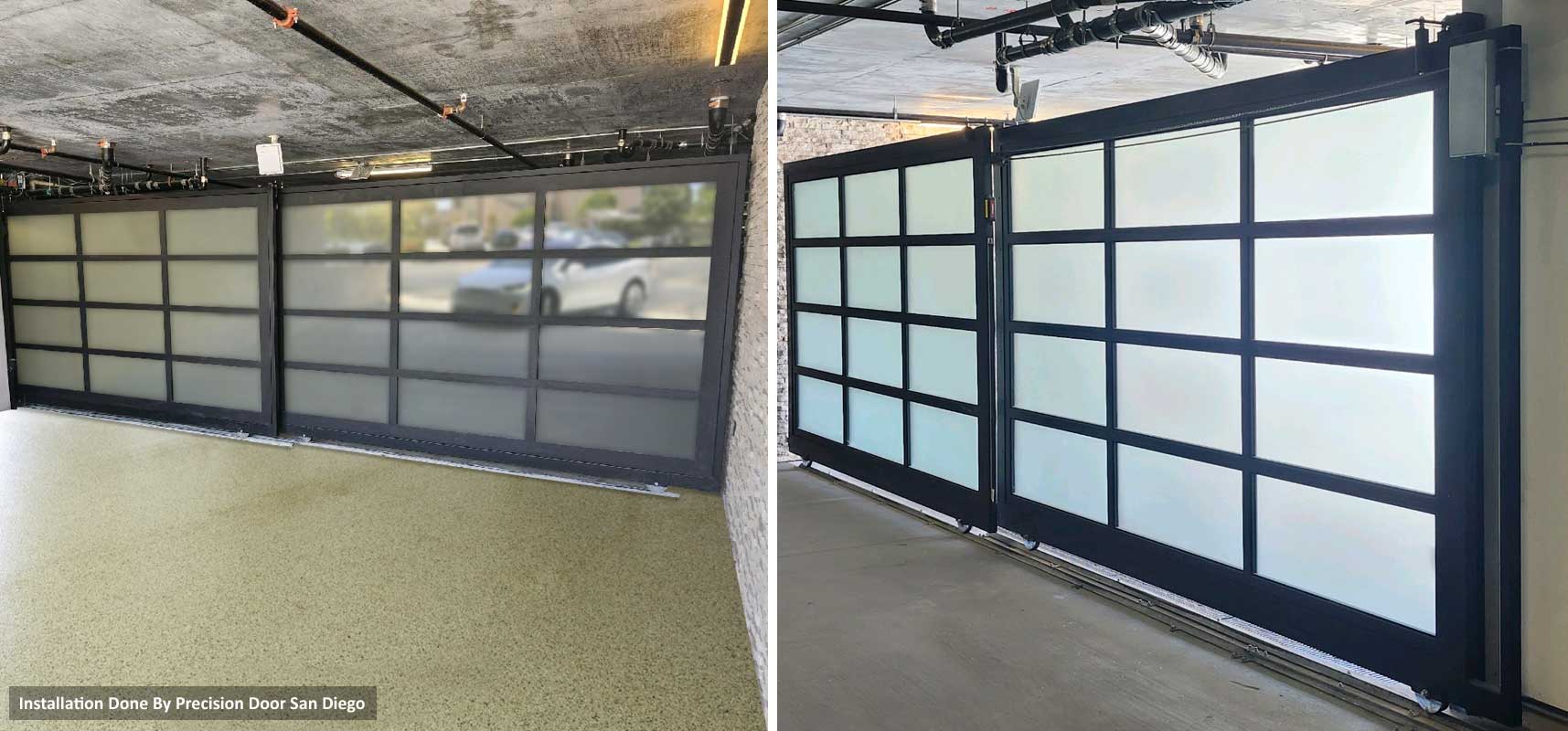

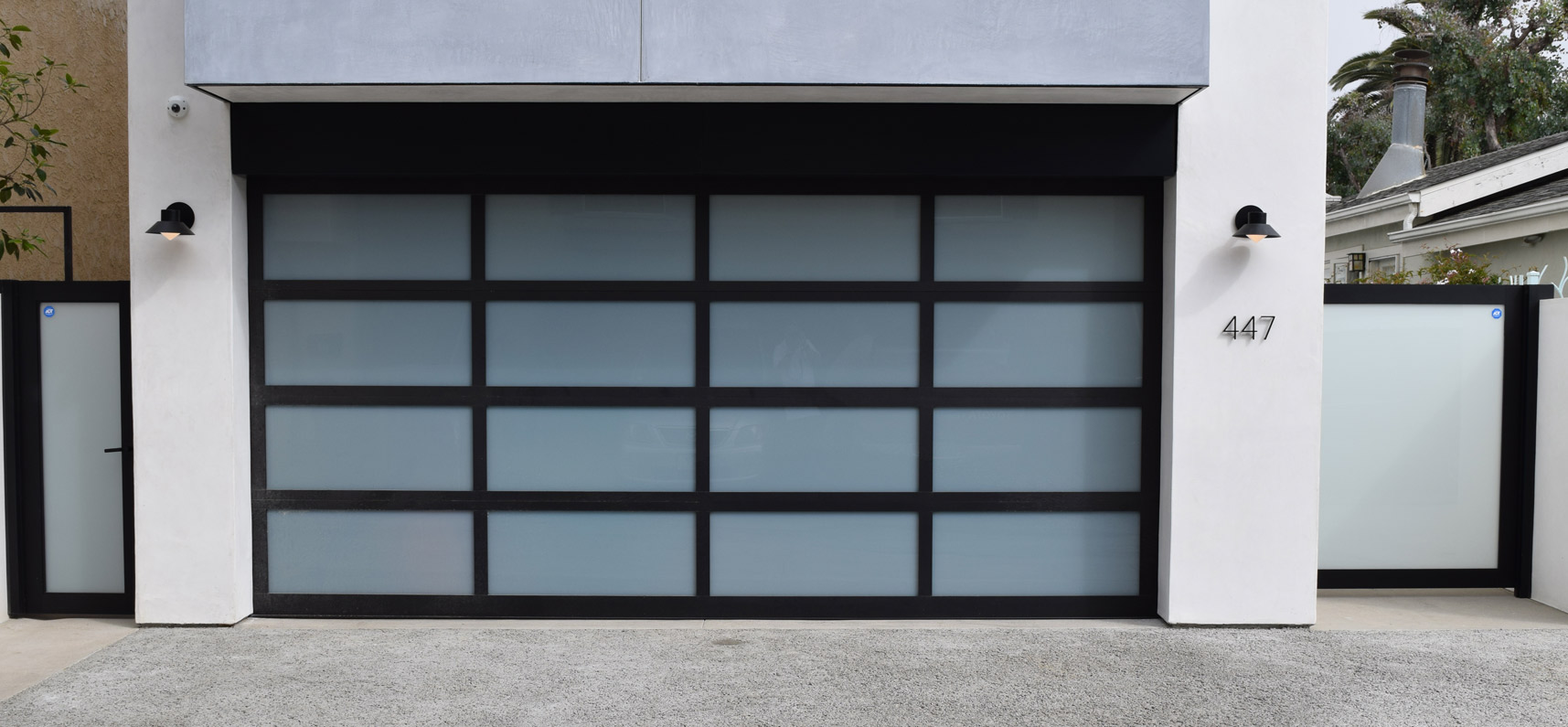

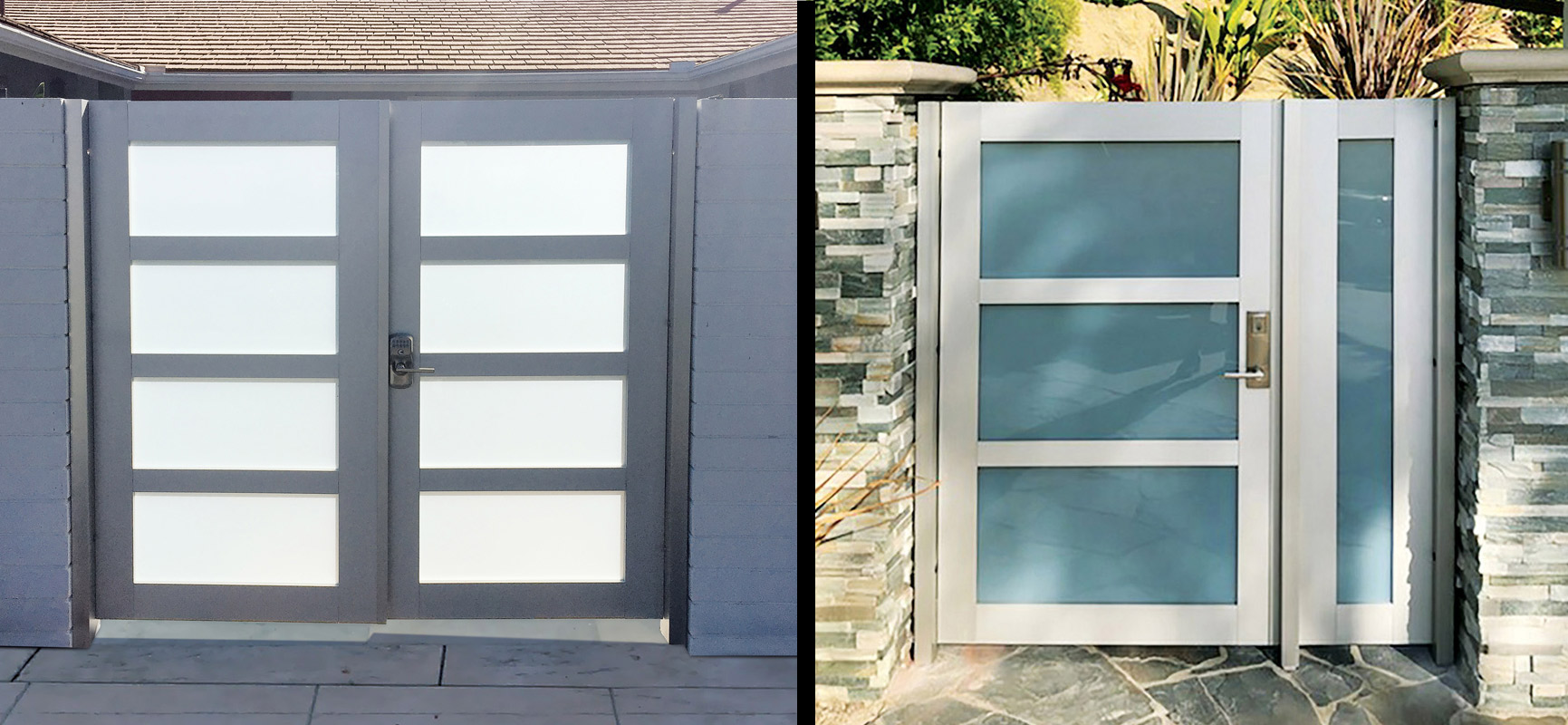

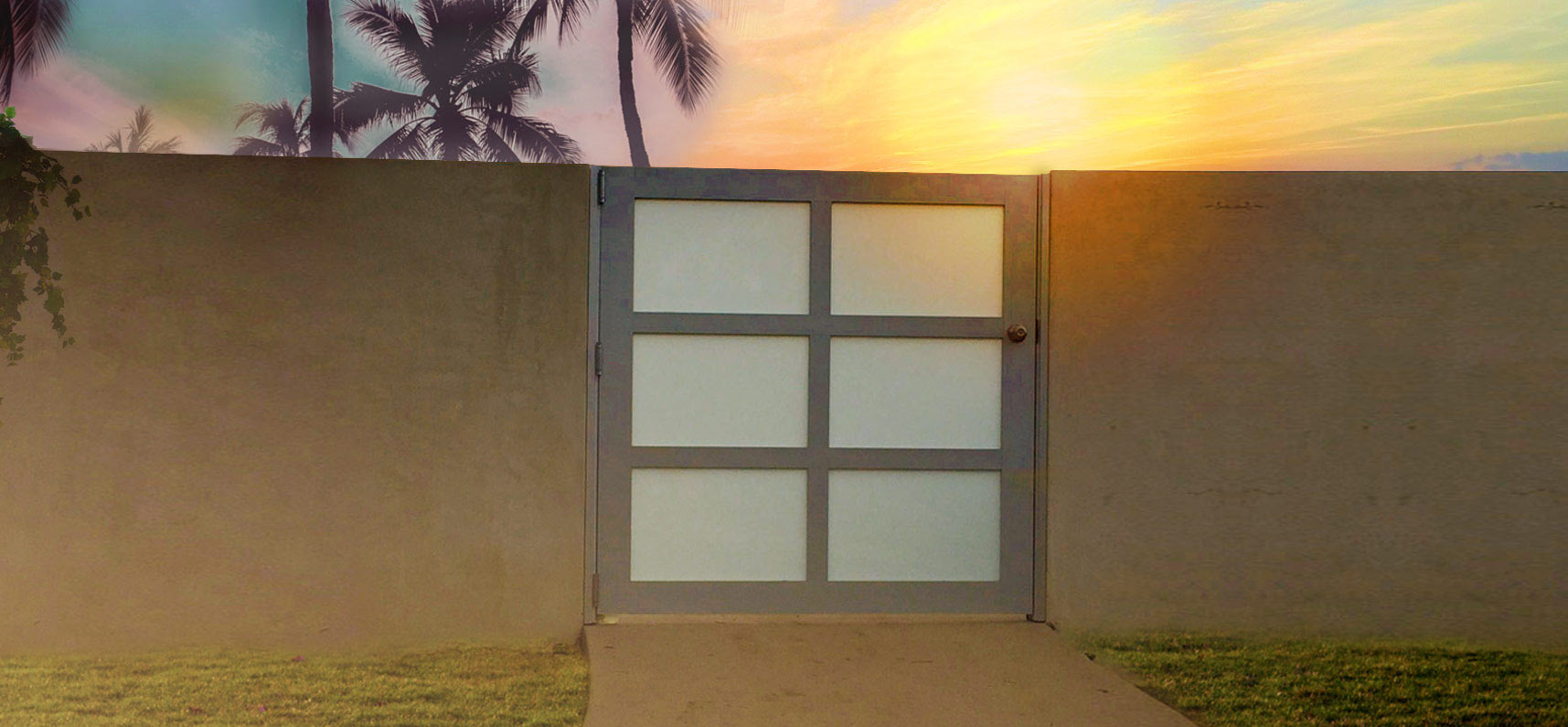

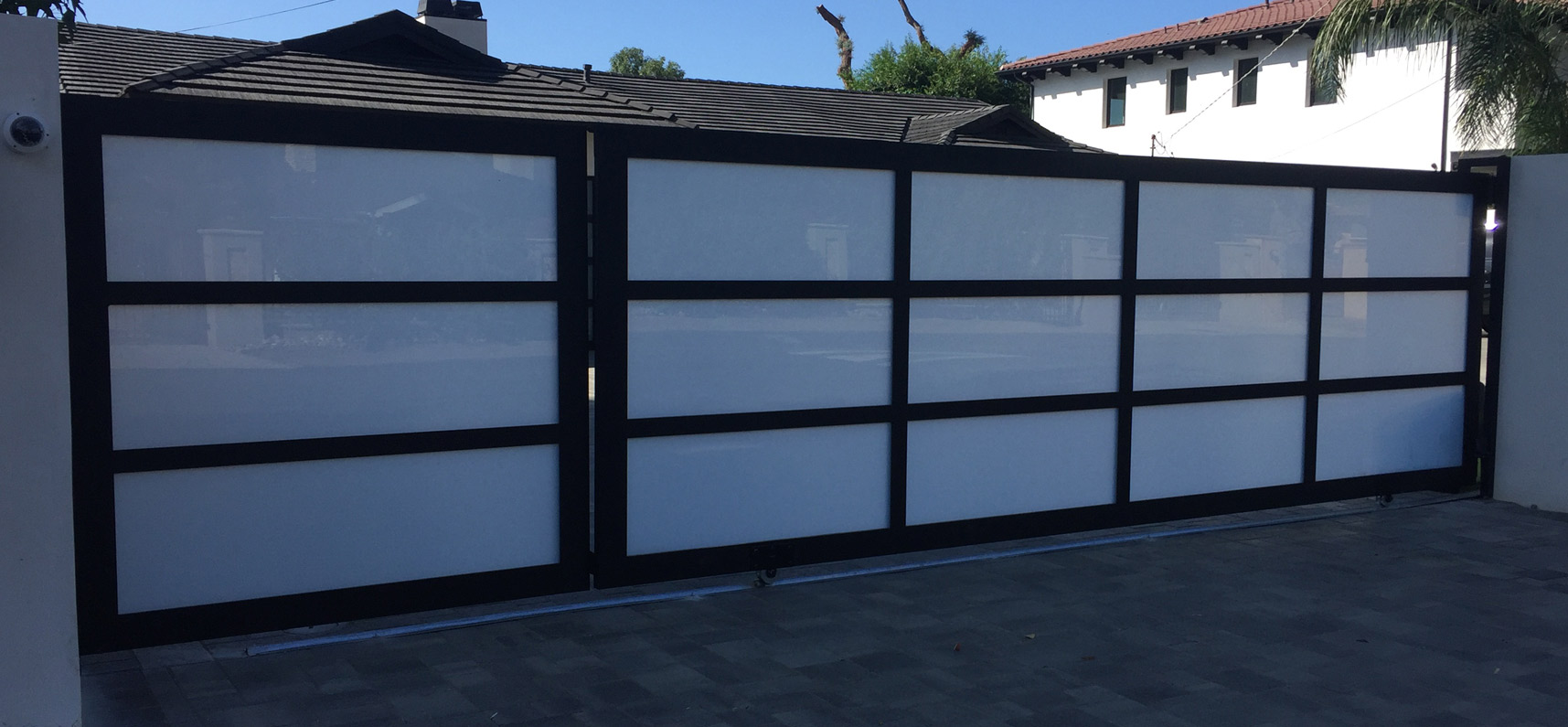

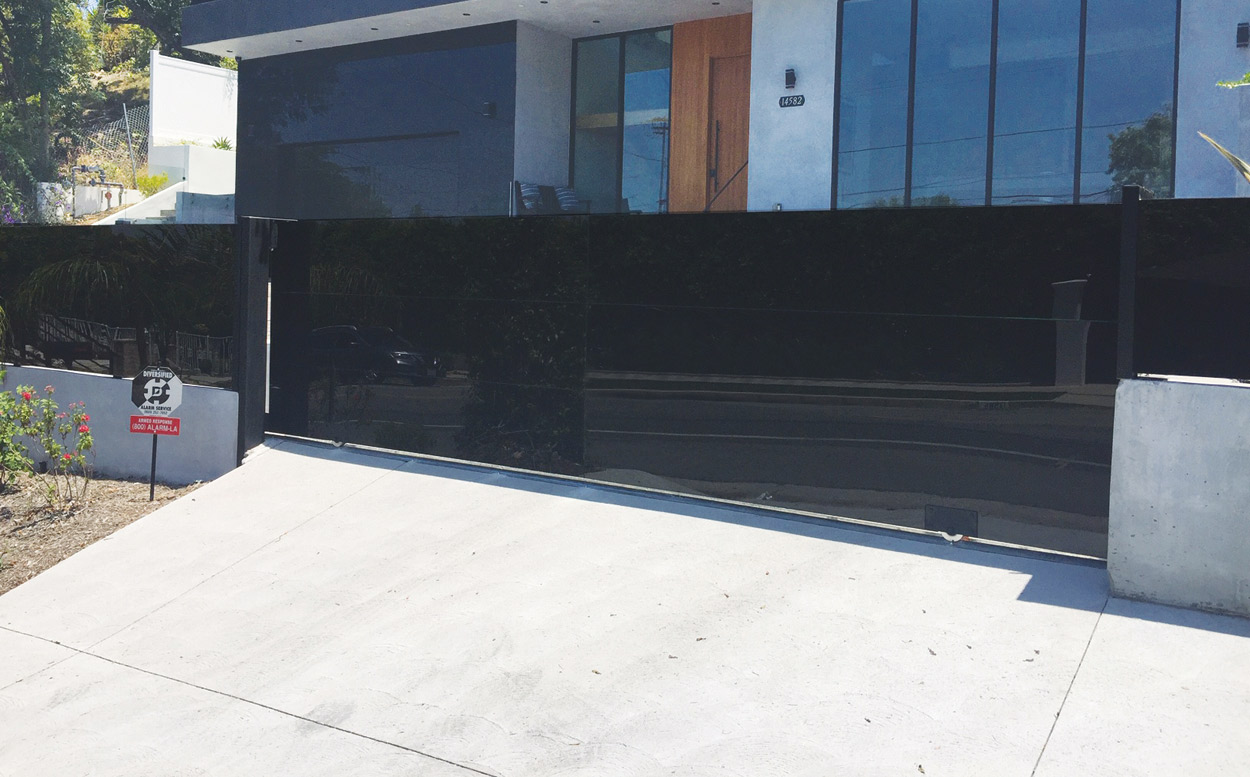

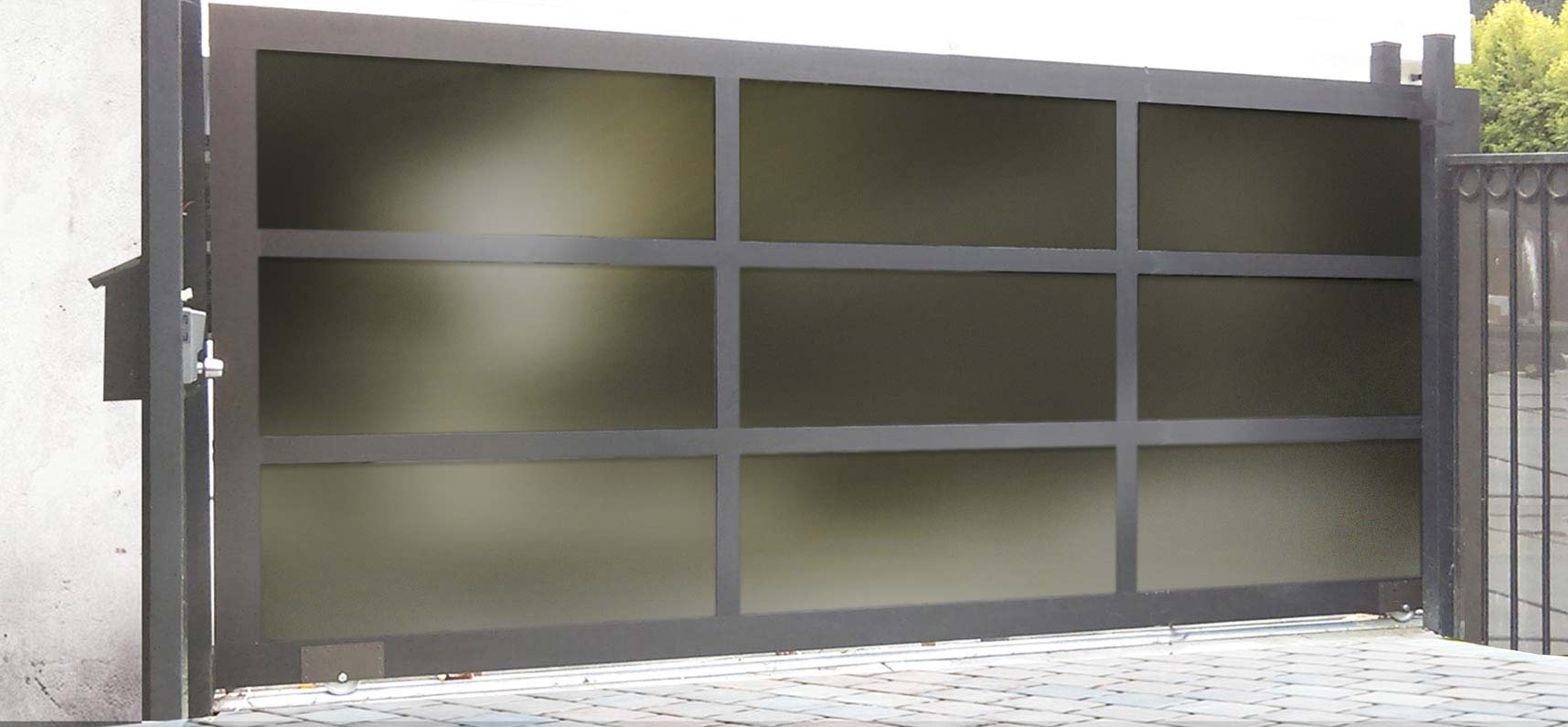

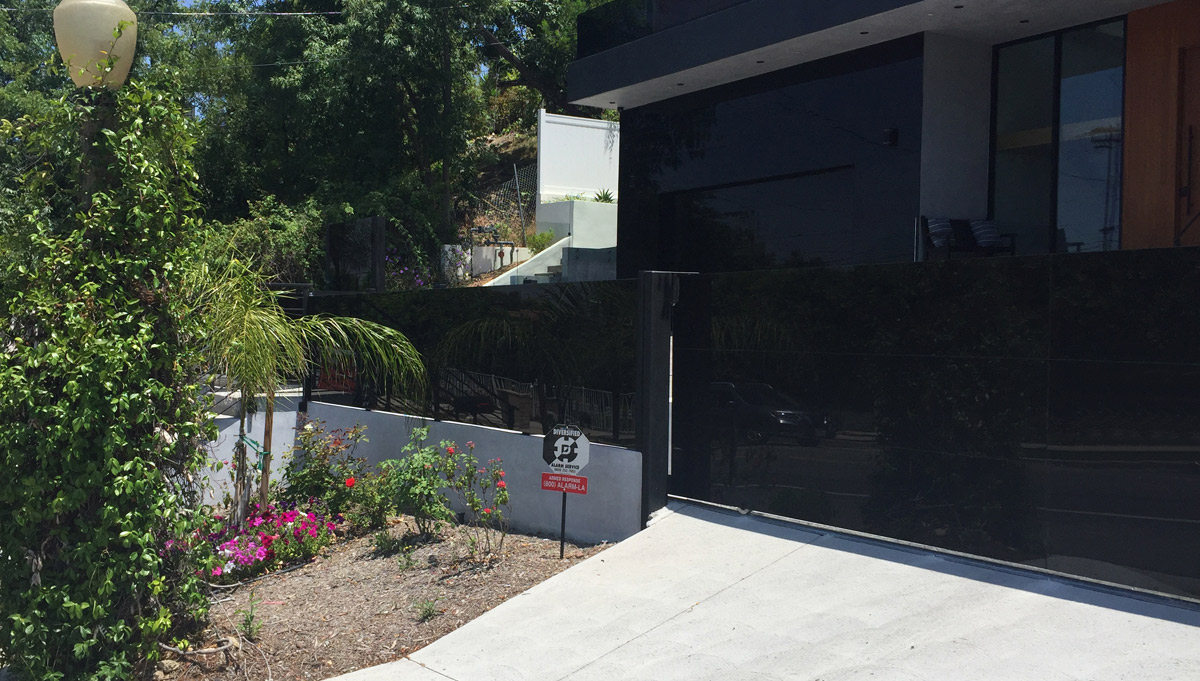

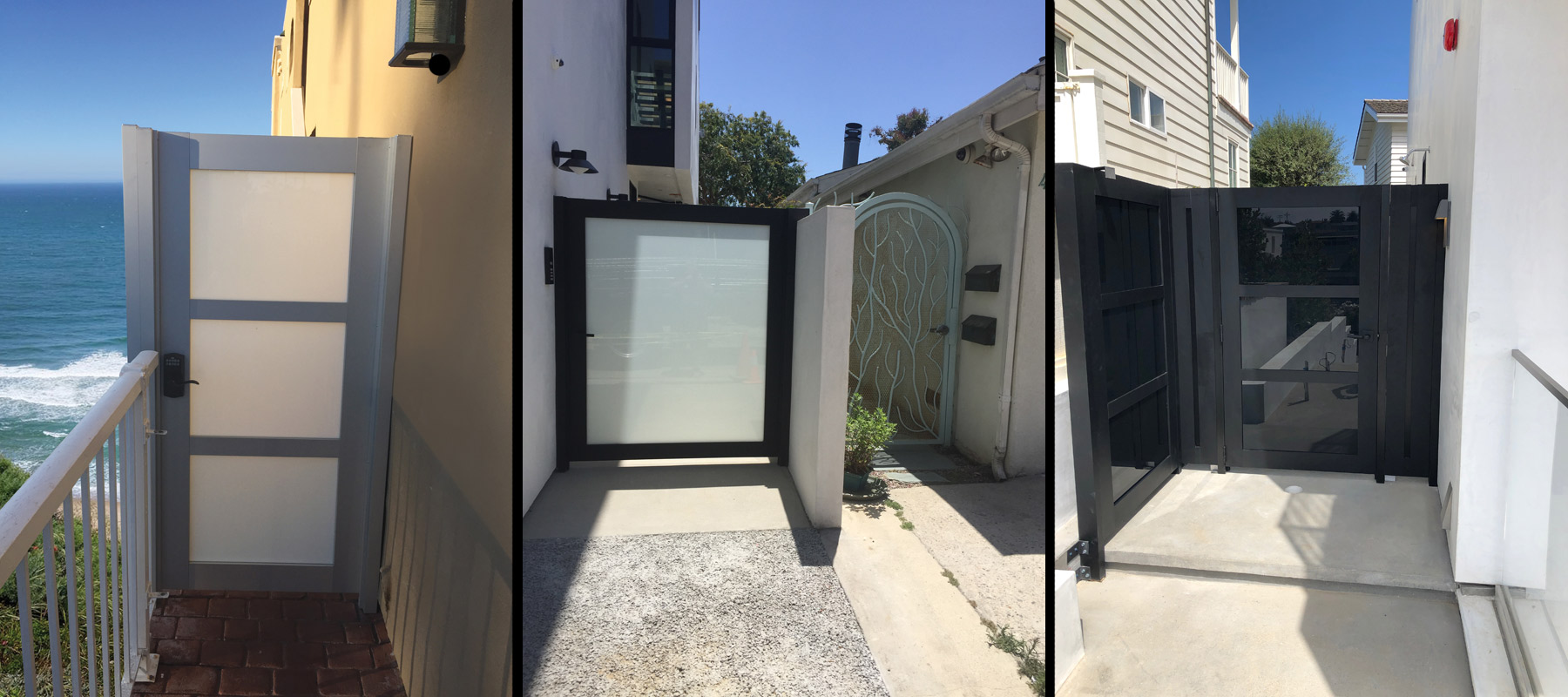

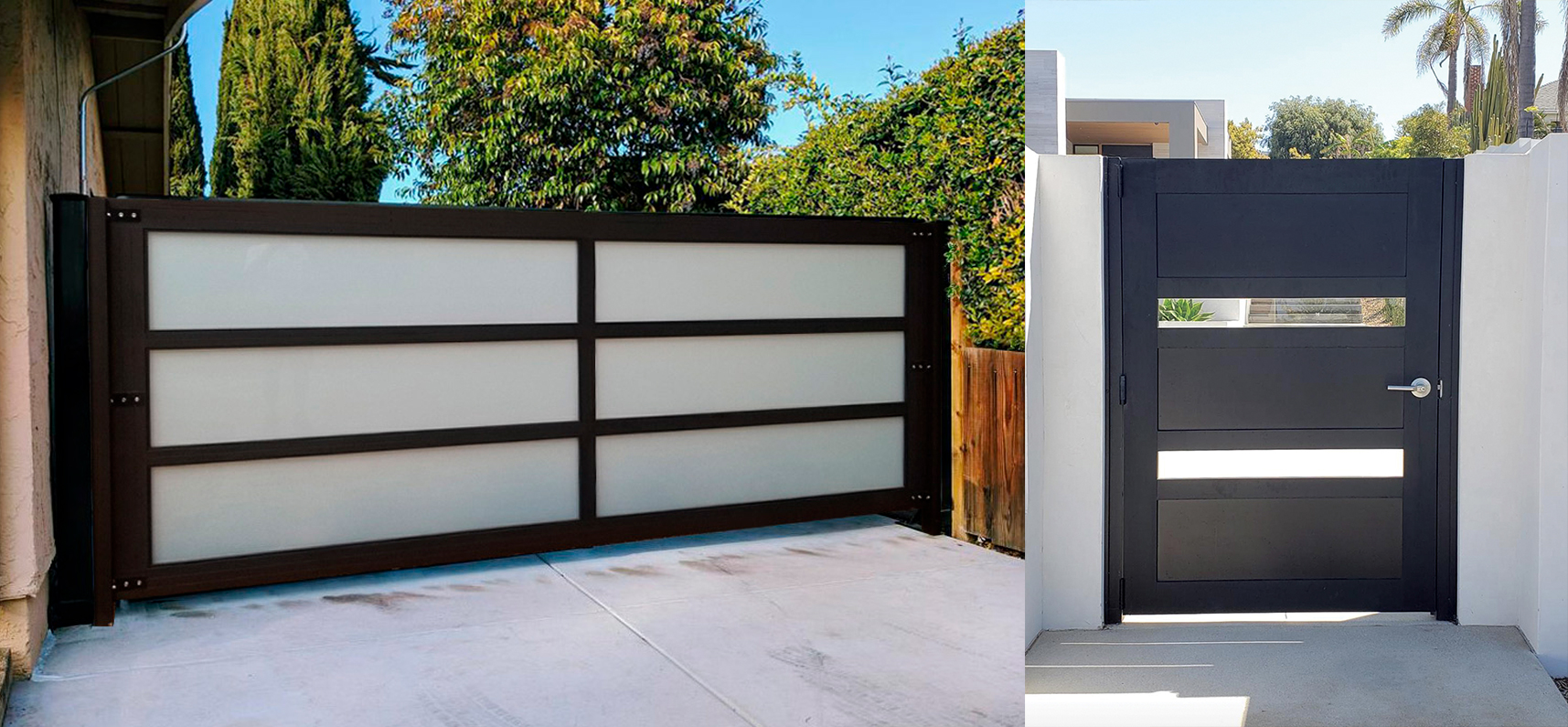

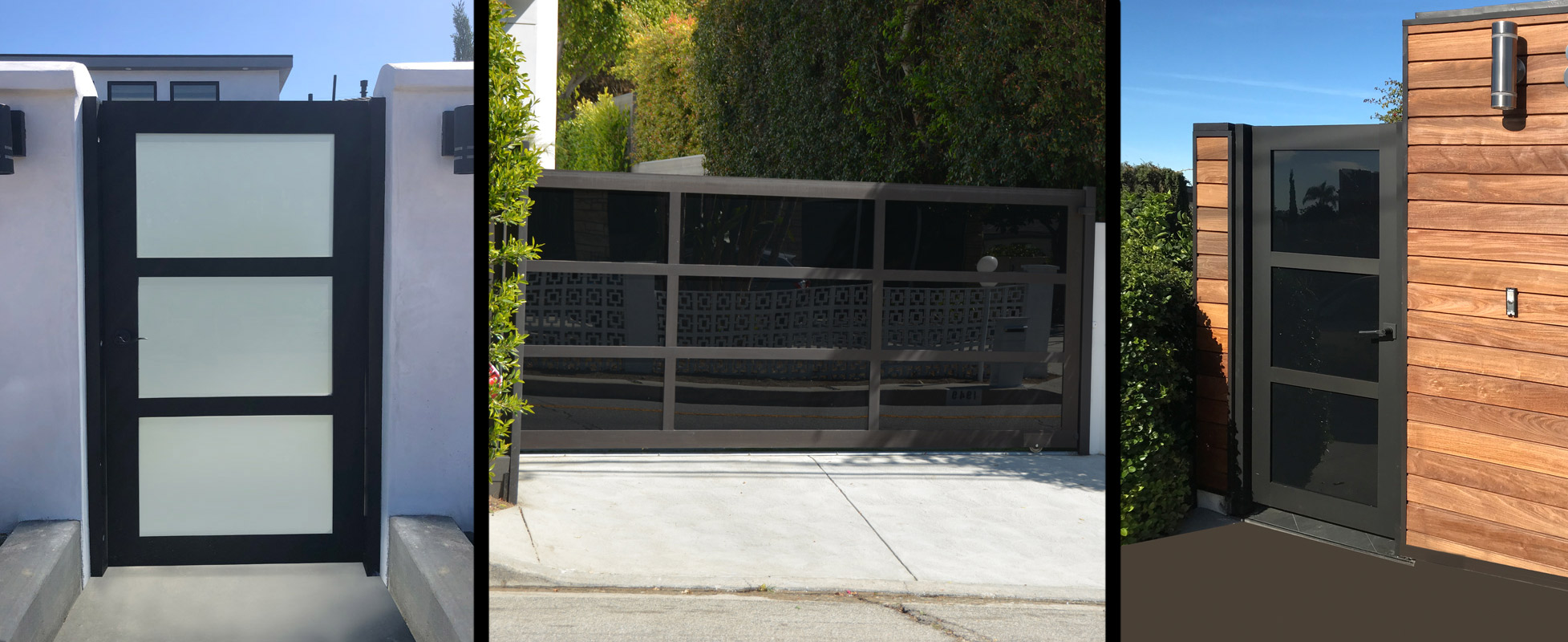

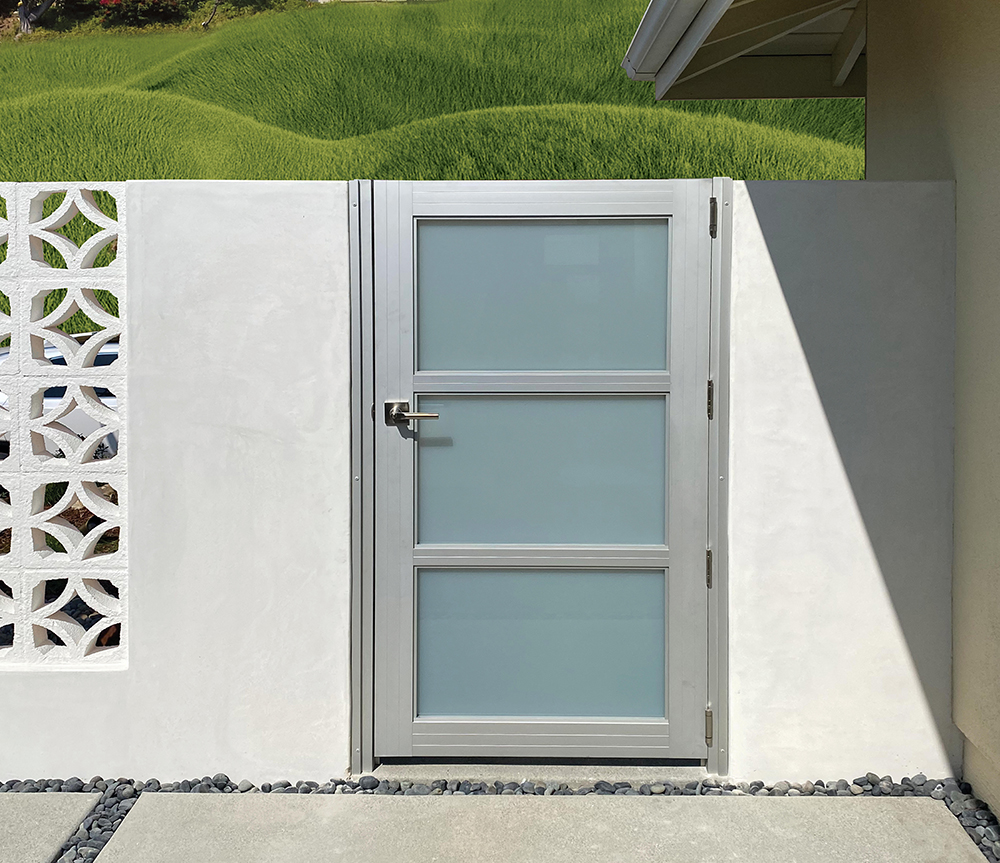

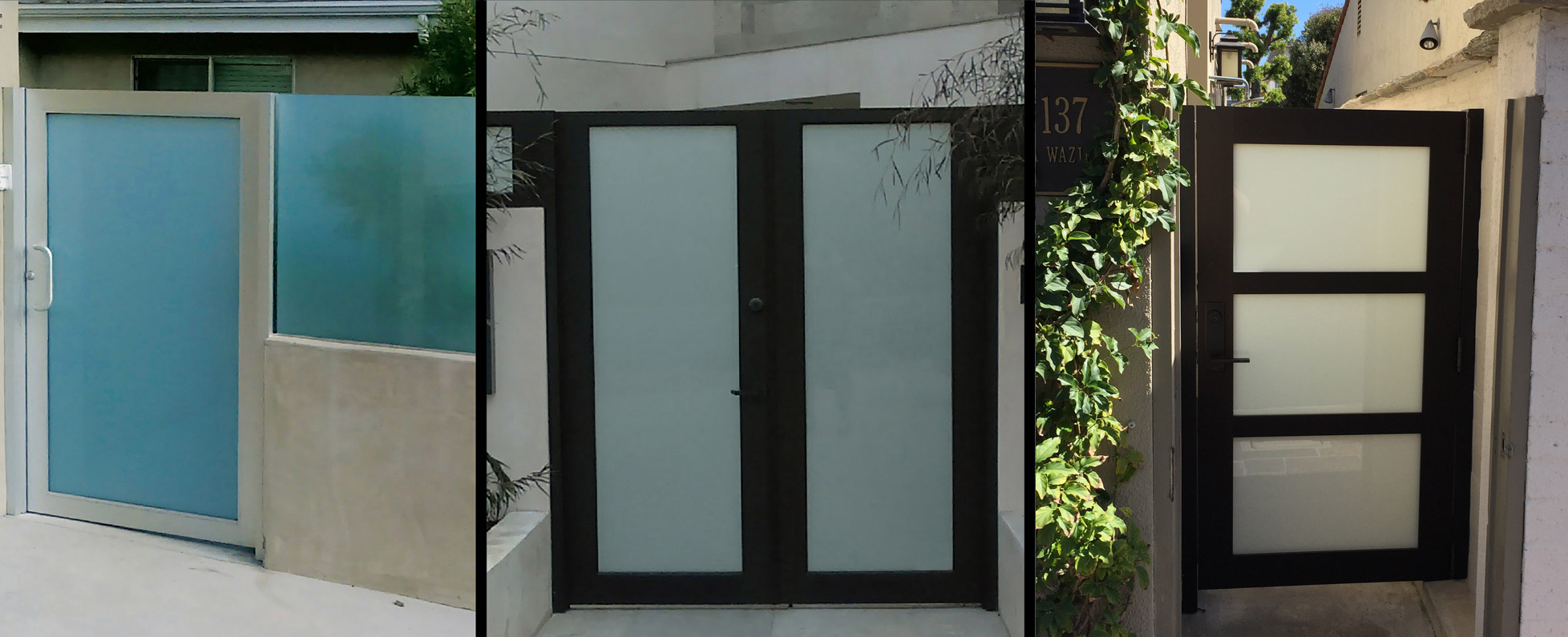

EL110 Aluminum Glass Gates have a unique look for today’s more contemporary-styled homes. Crisp lines and sleek design formed from durable corrosion-resistant aluminum frames and light-filtering glass make a striking complement to your home. EL110 Aluminum Glass Gates has a standard frame featuring a narrow width and an array of frame finishes and special custom options in door sizes.

Elegant Guarantee

At Elegant we provide quality craftsmanship that will last for years to come.

EL110 Specifications:

Material: 6063-T6 Aluminum Alloy
Thickness: 1-3/4” Thick Extrusions

RAIL WIDTHS

Vertical Rail: 4 5/8”
Top & Bottom Rail: 4 5/8”
Center Rail: 2 15/16”

MAX GATE SIZE

Sliding Gates: 18’
Swinging Gates: 6’
Pedestrian Gates: 4’
Warranty: Limited 2-year warranty

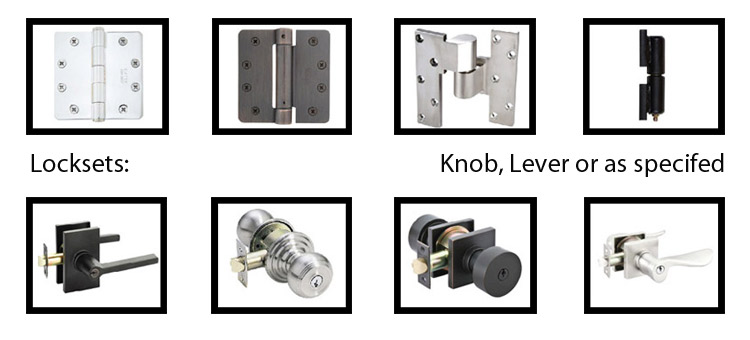

Hardware Specifications:

Hinges: Standard, Self-Closing, Pivot
Locksets: Knob, Lever or as specified
Finishes: Satin Nickel, Chrome, Black & Oil Rubbed Bronze
EL110 Post Available: 2 x 4 Aluminum in same finishes
EL5 Post Available: 2 x 4 or 4 x 4 in specified species

EL110 Frame Finishes

Over 100 different powder coat options available (additional charges apply).

EL5 Specifications

MATERIAL

Per Specification

RAIL WIDTHS

Vertical Post: 5 ¼”
Top & Bottom Rail: 5 ¼”
Center Post: 3”

MAX GATE SIZE

Sliding Gates: 18’
Swinging Gates: 6’
Pedestrian Gates: 4’
All sliding and swinging gates have steel frames.
All pedestrian gates over 3’ wide have steel frames.
Finish: Stain Grade or Paint Grade
Warranty: Limited 2-year warranty

Hardware Specifications:

Hinges: Butt, Spring, Pivot, Weld-On Barrel

Finishes: Satin Nickel, Chrome, Black & Oil Rubbed Bronze

EL110 Post Available: ¼” x 2 x 4 Aluminum in same finishes

EL5 Post Available: 2 x 4 or 4 x 4 in available species or steel
