FULL CUSTOM WOOD GARAGE DOORS

Our full-custom wood doors are specifically designed and handcrafted to create an authentic feel that will compliment all styles of architecture. Built with exceptional craftsmanship and attention to detail, every door is made to your specifications and can be constructed with nearly any species of wood that is desired such as Mahogany, Western Red Cedar, IPE, Walnut and many more. 18 standard options available in paint grade or stain grade made up of 4 to 5 layers which hides the rail construction leaving a genuine carriage house impression. Each design can be customized to add the “it factor” to the homes appeal.

Elegant Guarantee

At Elegant we provide quality craftsmanship that will last for years to come.

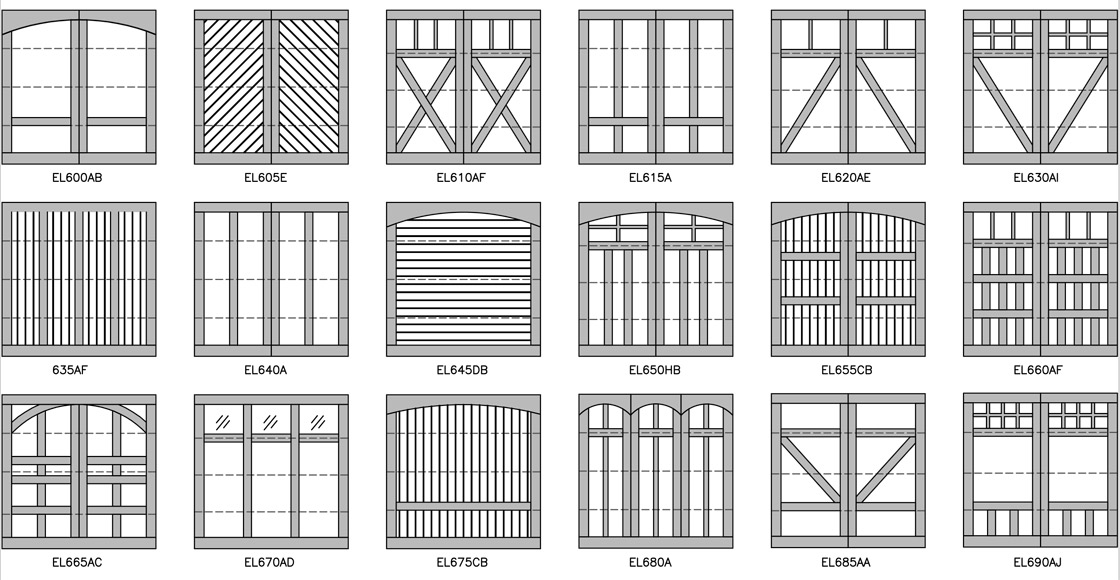

DOOR STYLES

Choose Your Door:

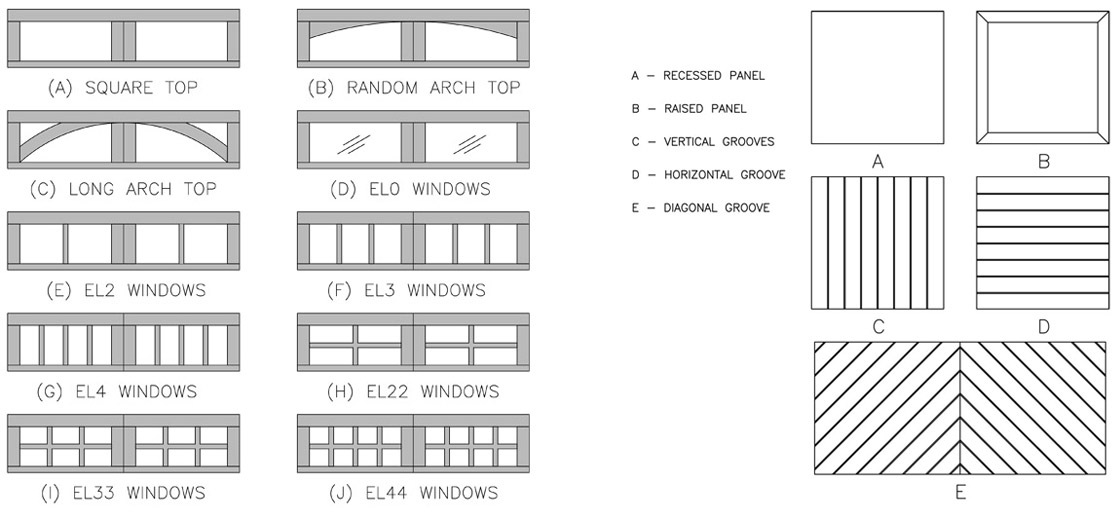

Window & Panel Styles

1/8” Clear Double Strength Billet Glass
Many other types of glass are available including insulated options ·
2” Wide Mullions
Faux Divide is standard
True Divide (Thru and Thru) available

FULL CUSTOM SPECIFICATIONS

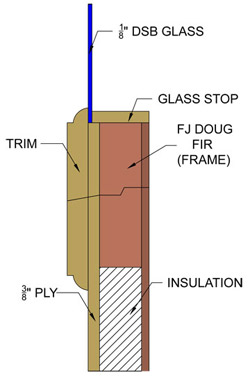

4 Layer Door

Paint Grade (primed white)

Back (layer 1): ¼” Luan
Frame (layer 2): 1-3/32” FJ (Finger Joint) Hem Fir (Stiles every 24”)
Insulation: 1-3/32” Polystyrene
Face (layer 3): 3/8” Baltic Birch Ply
Trim (layer 4): ½” Extira MDF

Stain Grade (unfinished)

Back (layer 1): ¼” Luan
Frame (layer 2): 1-3/32” FJ (Finger Joint) Hem Fir (Stiles every 24”)
Insulation: 1-3/32” Polystyrene
Face (layer 3): 3/8” Aquatek Marine Ply
Trim (layer 4): 11/16” Clear Superior Alder

5 Layer Door

Stain/Paint Grade Tongue & Groove (unfinished) - Primed White

Back (layer 1): ¼” Luan
Frame (layer 2): 1-3/32” FJ (Finger Joint) Hem Fir (Stiles every 24”)
Insulation: 1-3/32” Polystyrene
Face (layer 3): ¼” Luan
Face (layer 4): Materials Vary (See Options Below)
Trim (layer 5): Materials Vary (See Options Below)

Tongue and Groove Material Options

African Mahogany, Honduras Mahogany, Alder, Knotty Alder, Clear Western Red Cedar Vertical Grain, STK Cedar, Soft Maple, Hard Maple, Hemlock, IPE, Redwood, Red Birch, White Birch, Red Oak, White Oak, Teak, Walnut and many other options...

Finish

Paint Grade: Comes primed white with 1 coat of exterior grade water based primer
Stain Grade: Comes unfinished and requires sanding prior to finishing. (Finishing is required to be completed within 72 hours of installation)

Track

All 2" tracks are 12" or 15" Radius
14 gauge horizontals with 17 gauge verticals
All tracks are mounted with reverse continuous jamb angle
Horizontals are reinforced with 13 gauge angle mounted continuous to the length of the horizontal.
All 3" tracks are 15" Radius - 12 gauge and use is determined by weight of door.
Options: Low Headroom (0" or 3.5" ), High Lift, Vertical Lift, Follow the Pitch

Hardware

All components are galvanized steel and consist of 11 gauge hinges, 12 gauge top & bottom fixtures.
2" nylon 10 ball bearing rollers with long-stem for top & bottom fixtures and short-stem for hinges.
Inside lock included.

Counterbalance

Springs are oil tempered and calibrated per door weight, size and track requirements
Standard springs are 10,000 cycle
25k, 50k, 100k cycle springs are available with an additional cost
12 guage bearing & spring plates
16 gauge torsion tube is standard, 14 gauge, 11 gauge and solid shafts are available and used when specified

Struts

22GA 2-1/4" galvanized steel struts with every door
3" when specified
Quantity is determined by number of sections

Weather Seal

1-3/32" EPDM bottom seal and nailed in using galvanized nails

Miscellaneous

Putty: All doors are assembled with galvanized staples and filled with putty except Cedar and Marine Ply.
Standard Texture is smooth.
Hand Hewn, Re Sawn, and Wire Brushing are available for additional cost.
Perimeter Weather Strip (Stop Mold): 11/16”x2-1/4”.

Warranty

Limited 1 year warranty against defect in workmanship or material; limited 1 year warranty on hardware and components.
